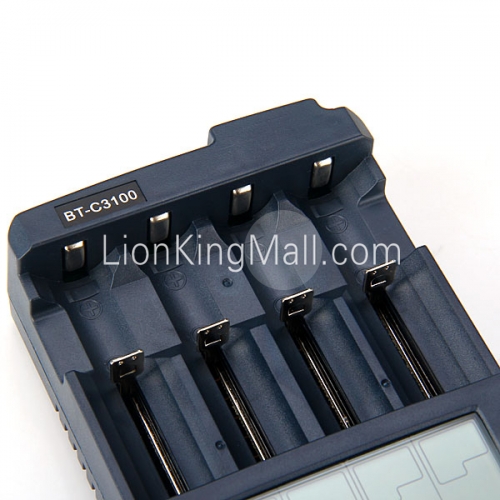

BT-C3100 LI-ion NiCd NiMh Lcd Intelligent Digital 2.0 Carregador battery charger AA 18650 charger

Description:

         The product is intended to charge and discharge NiCd, NiMH or 3.7v Li-ion rechargeable batteries in size type of 16340, 10440, 14500, 16340, 18500, 18650, 26650, 26500. It provides four independent charging slots for rechargeable batteries. The charger can also optimize and test the maximum capacity of the rechargeable batteries. Each charging slot has its own display to show various information, such as, charging current, battery voltage, charged capacity, battery internal resistance and elapsed charging time.

         The charging current can be selected for 200mA, 300mA, 500mA , 700mA, and 1000mA ( if only bay 1 and/or 4 are used to charging batteries, current 1500mA and 2000mA can be further selected). Default charging current is 500mA.
          Discharging current can be selected between 200mA, 300mA, 500mA, 700mA and 1000mA. Default discharging current is 500mA.

         The charger can charge batteries of different type and size and with different capacity at the same time. It also integrates the minus delta voltage (-ΔV) for NiCd or NiMh battery charging termination, and for Li-ion batteries charging to 4.2V with pre-selected constant current. When battery is fully charged, the charger will switch to trickle charging automatically. Therefore battery will be kept at its optimum capacity. The charger also includes overheat detection to protect rechargeable batteries and charger itself from overheating. When temperature sensor detects PCB or battery voltage is over 40 degrees Celsius, then the fan will be turned on automatically. Only when all 6 temperature sensors temperature is measured less than 40 degrees Celsius, then the fan will be switched off.

Features:

• Capable of charging 4 batteries simultaneously
• Each of the battery slots monitors and charges independently
• Automatically identifies Li-ion, Ni-MH and Ni-Cd rechargeable batteries
• Features two charging modes (CC and Pulse Charge)
• Automatically detects battery status and selects the appropriate voltage and charge mode
• LCD displays charging progress for each battery
• Automatically stops charging when complete
• Features reverse polarity protection
• Designed for optimal heat dissipation
• Certified by both RoHS and KC

Specifications:

• Power adapter AC input:    AC 100-240V 50/60HZ
• Power adapter  output:      12V
• Charger input voltage:        10~16v(meet with 12V car charger)
• Charging  current:               CC or Pulse charging
• Charging current range:      300~1000mA,manual adjustment available
• Recharge current range:     100~1000mA,manual adjustment available
• Max support capacity:         20000mAh
• Fully charged saturation:     over 97%
• Fully charged handling:       keep full power
• Display:                               LCD character display
• Battery type:                       nimh/nickel-cadmium/lithium-ion batteries
• Advanced function:            Battery repair,Capacity Test,resistance test
• Temperature protect:         6 precision temperature detection
• Full charing detection:      16bit
• Prohibit rechargeable battery:smart refused to charge,disposable batteries,1.6v                                               nickel-zinc rechargeable battery
• Compatible with:

               Li-ion / IMR: 26650, 22650, 18650, 17670, 18490, 17500, 17335, 16340(RCR123), 14500
               Ni-MH / Ni-Cd: AA, AAA, C

Package Including:

     1 x Battery Charger BT-C3100(with full package).
     1 x Power adapter AC input

     1 X Operation Instructions
