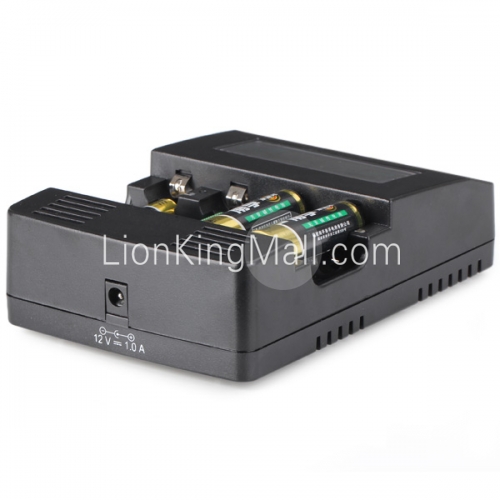

BT-C2000 Intelligent Charger With Overheat Detection & Measuring Resistance Charger for AA AAA Nimh Battery

Features

• · Four indepentent channels can be programmed as group or individually.
• · Charge, condition and analyze one to four AA or AAA batteries.
• · Charge, condition and analyze one or two C and D batteries.
• · Charge, condtion and analyze NiMH and NiCd rechargeable batteries.
• · Test internal resistance for any 1.5V battery including Alkaline.
• · Easy to read large Backlit LCD display.
• · Digitally displays capacity, voltage, time elapsed and current.
• · Adjustable charging rate from 200 to 1400 mA. (1000 mA max 4 channels)
• · Five modes of operation: o Charge: o Discharge: o Discharge Refresh: o Charge Test: o Quick Test:
• · Negative delta V (-dV) full charge detection.
• · 16 bit Delta-Sigma Analog to Digital Converter.
• · Four independent thermocouples to manage battery temperature.
• · Two independent thermal monitors for the charger circuits.
• · Second Generation optimized charging circuits and firmware.
• · 12V input powered and can be powered by an optional car adapter.
• · Worldwide voltage switching power supply.
• · Rugged construction with extensive ventilation for the batteries.

Specifications
Operating voltage 12Vdc. 10V minimum, 16V maximum.
Adapter Power Supply input: 100 ">- 240 VAC, 50 -60 Hz.
Adatper Power Supply output: 12Vdc 1.0A.
Charge current: maximum 1400 mA, 200 mA increments.
(1000 mA max all 4 channels)
Default charge current 400 mA.
Discharge current range up to 500 mA.
Maximum Charging Capacity 20,000 mAh
Operating Temperature: 0 to 40 deg C

Includes:
BT-C2000 Charger
Wall Adapter Power Supply
Operating Manual
